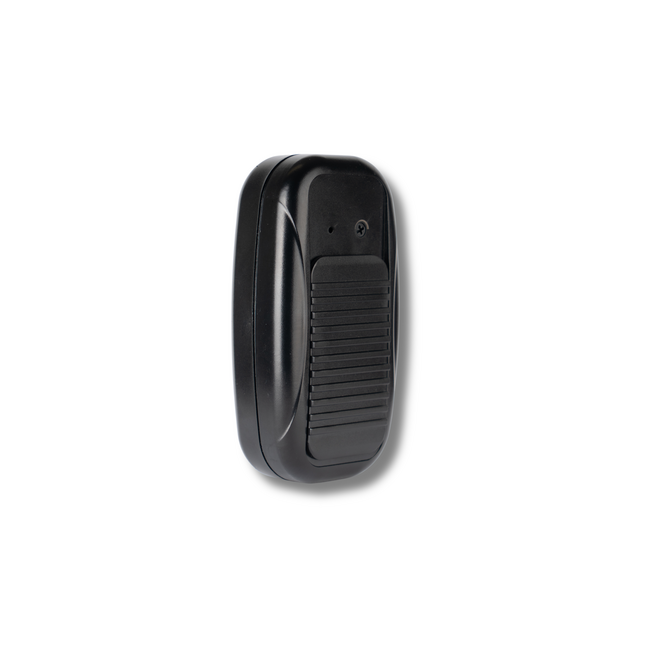

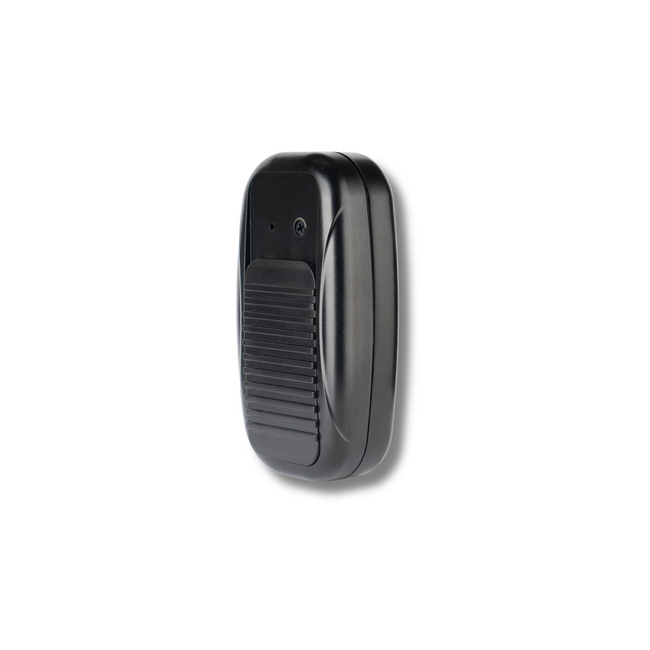

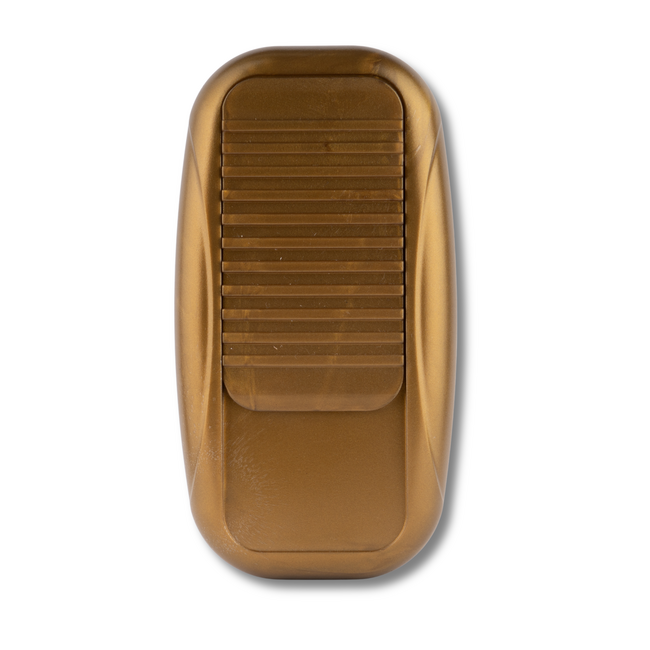

24V LED floor dimmer for LED lighting and LED strips

The Tradim 24V LED floor dimmer with integrated driver is suitable for dimming 24V LED lighting and can be used in floor lamps, table lamps and LED strips. The dimmer operates with an input of 220-240V AC and converts this to 24V DC, eliminating the need for an external power supply. Thanks to the slider control, the lighting can be adjusted smoothly or switched off completely.

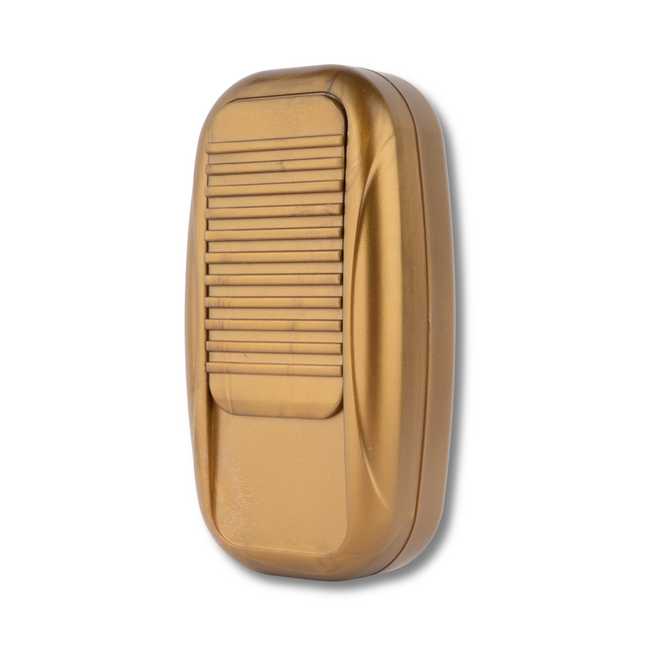

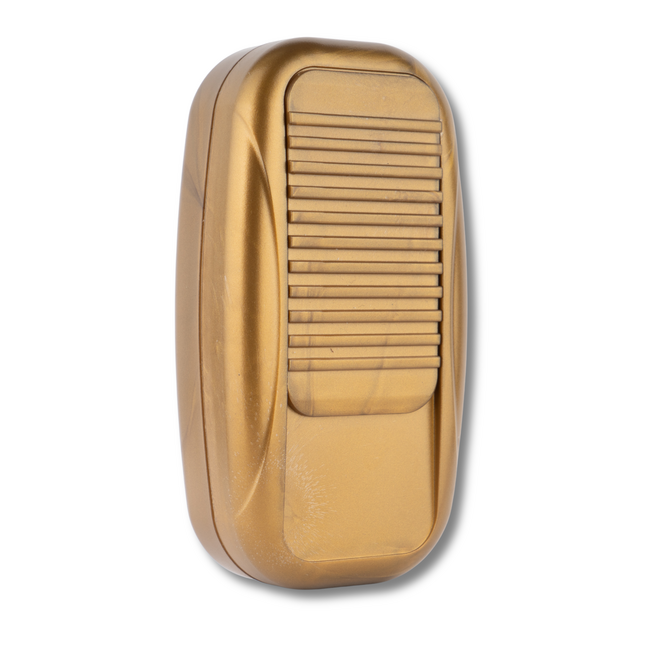

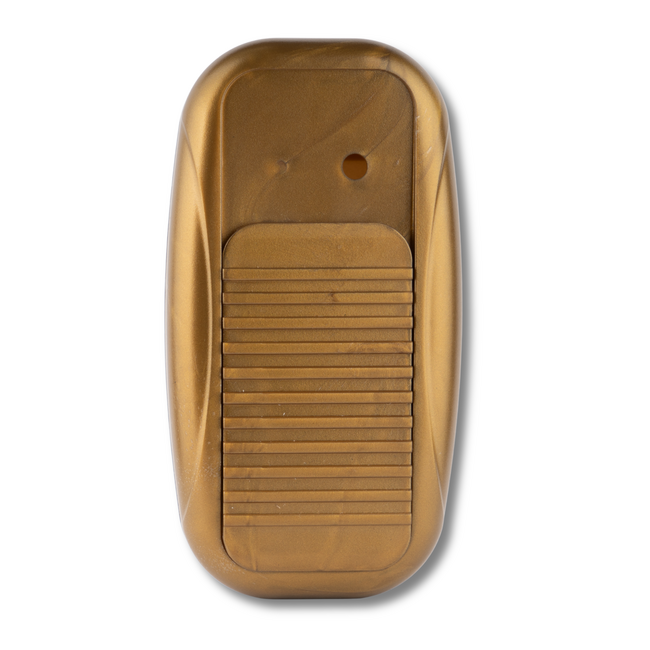

With a power range of 1-25W, this floor dimmer provides a smooth dimming range for optimal lighting comfort. The dimmer uses PWM dimming technology, ensuring stable dimming performance and consistent light output. The floor dimmer is available in black and gold/bronze, with the gold/bronze version perfectly matching lamps and cables with a luxurious appearance.

Key features

• Suitable for 24V LED lighting
• Integrated driver, no external power supply required
• Power: 1-25W
• Slider control for dimming and switching
• Smooth dimming range for optimal lighting comfort
• Soft start for longer LED lamp lifespan
• Adjustable minimum dim level via trim screw

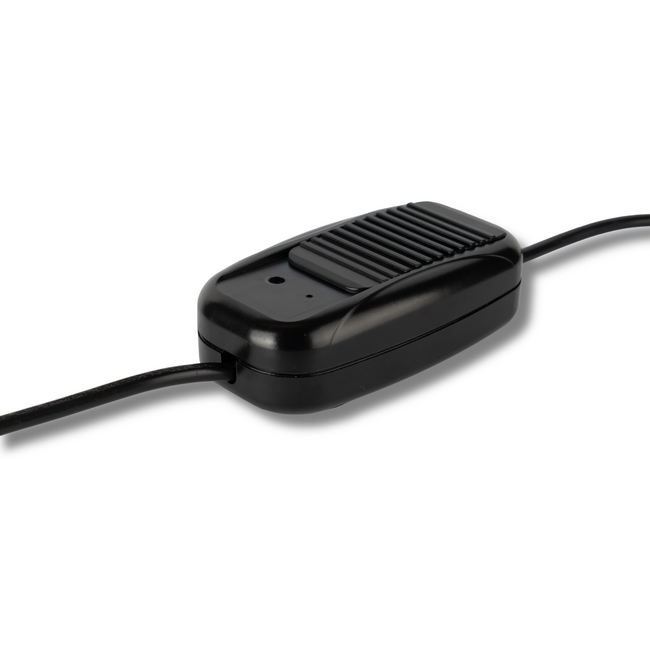

• Wide cable entry (Ø 7.0 mm), also suitable for textile cables
• Energy efficient with low standby consumption (<0.5W)
• Equipped with indicator LED

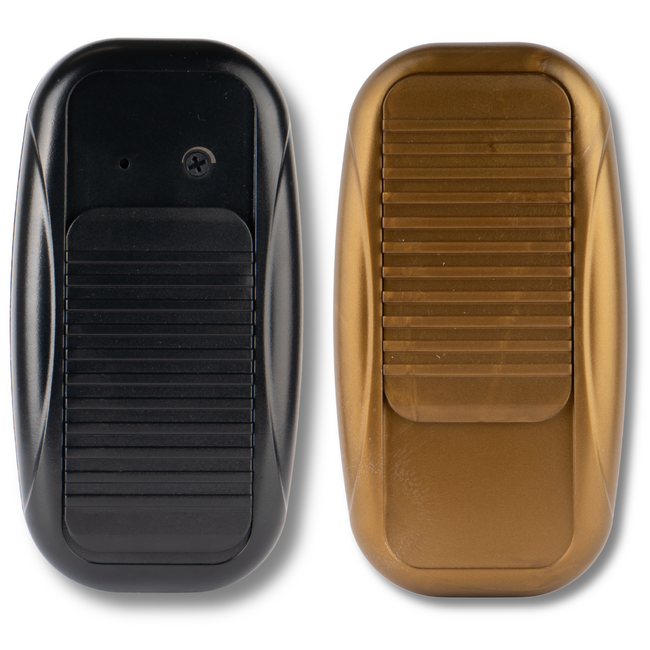

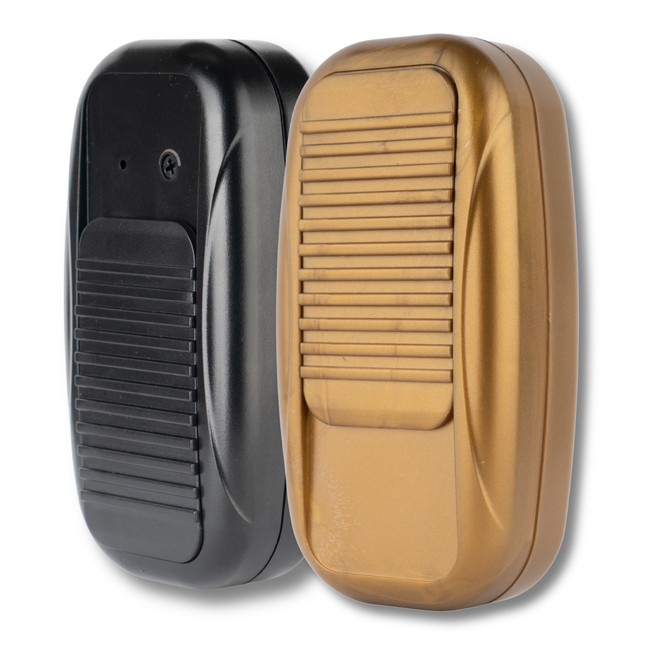

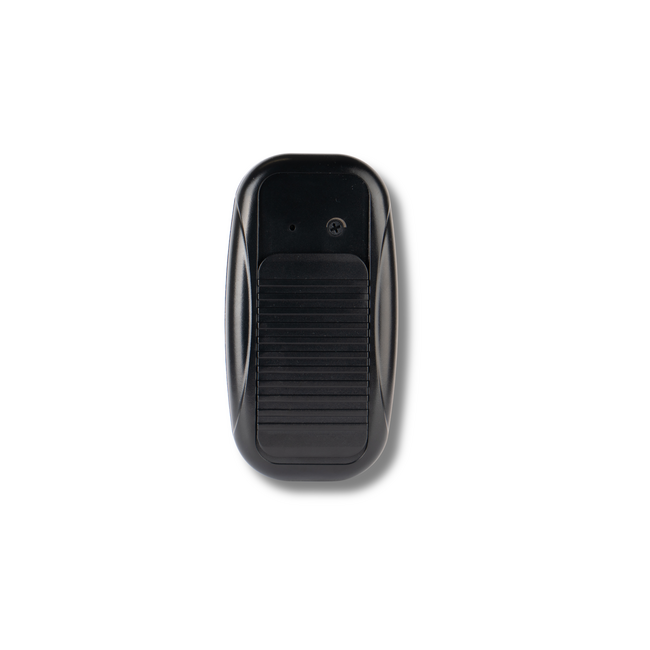

• Available in black and gold/bronze

Dimming technology

The Tradim 24V floor dimmer operates based on PWM (Pulse Width Modulation). This dimming technique ensures smooth and stable dimming performance, precise output levels and consistent colour over the entire dimming range. This makes the dimmer particularly suitable for 24V LED lighting and LED strips.

Compatibility and power

Always use the dimmer with suitable 24V LED lighting. Dimming performance depends on the quality of the connected LED lighting. This Tradim floor dimmer is suitable for the following applications:

	LED lighting - 24 Volt: max 25W
	LED strips - 24 Volt: max 25W

Maximum load
This floor dimmer is suitable for 1-25W. Never load a dimmer beyond 80% of its maximum capacity.

Installation
Always connect the dimmer according to the supplied wiring diagram. If you do not have electrical knowledge, have this done by a professional.

Specifications

• Control: slider
• Dimming technology: PWM
• Input voltage: 220-240V AC
• Output voltage: 24V DC
• Power: 1-25W
• Application: 24V LED lighting and LED strips
• Adjustable minimum dim level: yes, via trim screw
• Cable entry: Ø 7.0 mm
• Suitable for textile cable: yes
• Standby consumption: <0.5W
• Indicator LED: yes
• Dimensions: 115 x 61 x 34 mm
• Warranty: 2 years
• Colour variants: black / gold-bronze

Variants and article numbers

Also available

• 12V version
• 230V version

Warranty
We offer a 2-year warranty. Thanks to the applied dimming technology and soft start, this dimmer positively affects the lifespan of connected LED lighting.
