230V floor dimmer for floor and table lamps

The Tradim 230V floor dimmer is suitable for dimming lighting on mains voltage and can be used in floor and table lamps. The dimmer operates on 230V and is suitable for LED, halogen and incandescent lamps. Thanks to the slide control, the lighting can be smoothly adjusted or switched off completely.

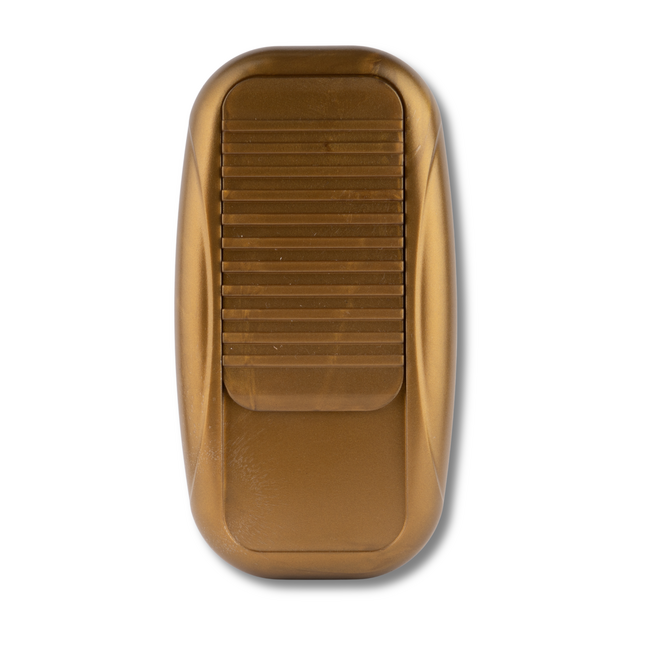

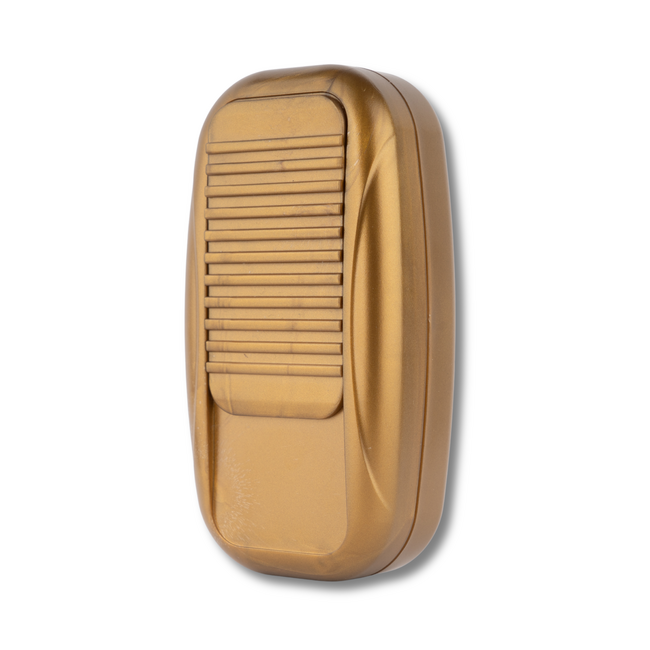

With a power range of 1-100W/VA and a maximum of 70W for LED, this floor dimmer offers a smooth dimming range for optimal lighting comfort. The dimmer is available in transparent, white, black and gold/bronze, with the gold/bronze version matching lamps and cables with a premium look perfectly.

Key features

• Suitable for 230V lighting
• Suitable for LED, halogen and incandescent lamps
• Power: 1-100W/VA, maximum 70W LED
• Slide control for dimming and switching
• Smooth dimming range for optimal lighting comfort
• Soft start for a longer lifespan of LED lamps
• Adjustable minimum dim level via adjustment screw
• Wide cable entry (Ø 70 mm), also suitable for textile cables
• Energy-efficient with low standby power consumption (<0.5W)
• With indicator LED

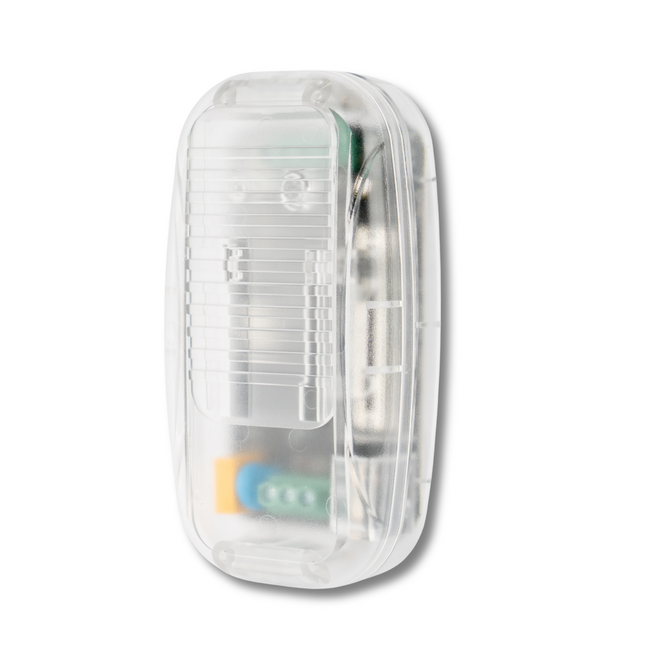

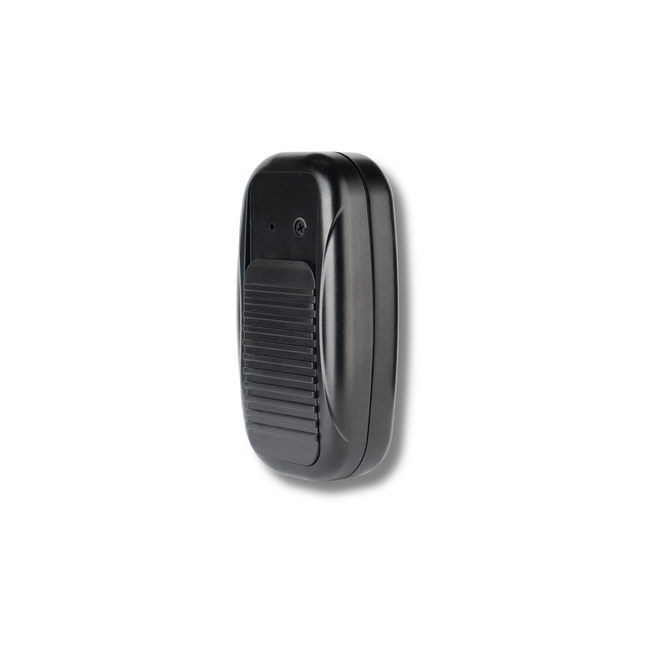

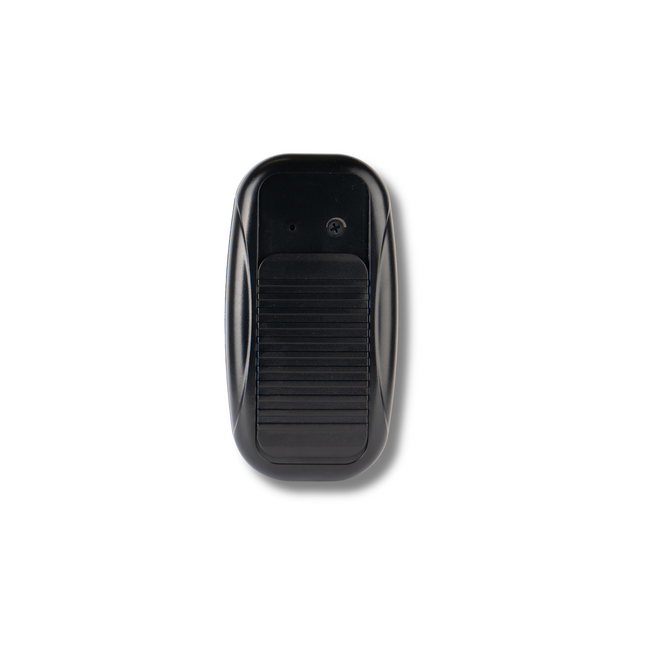

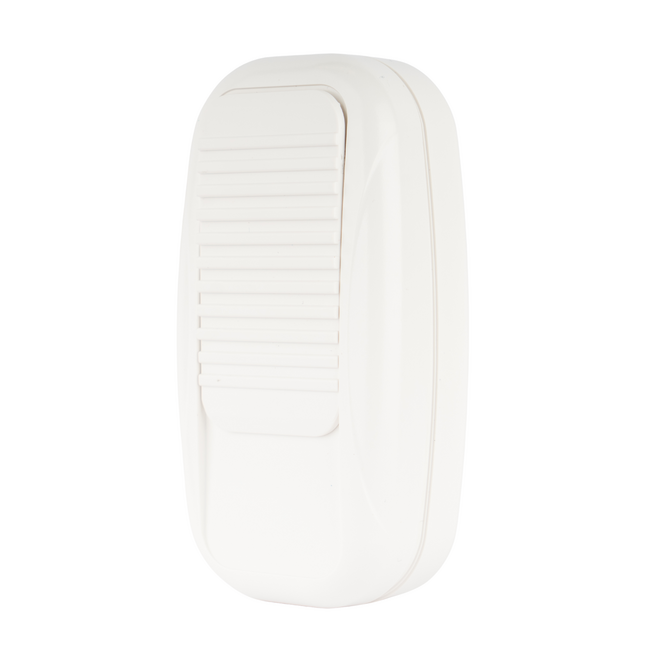

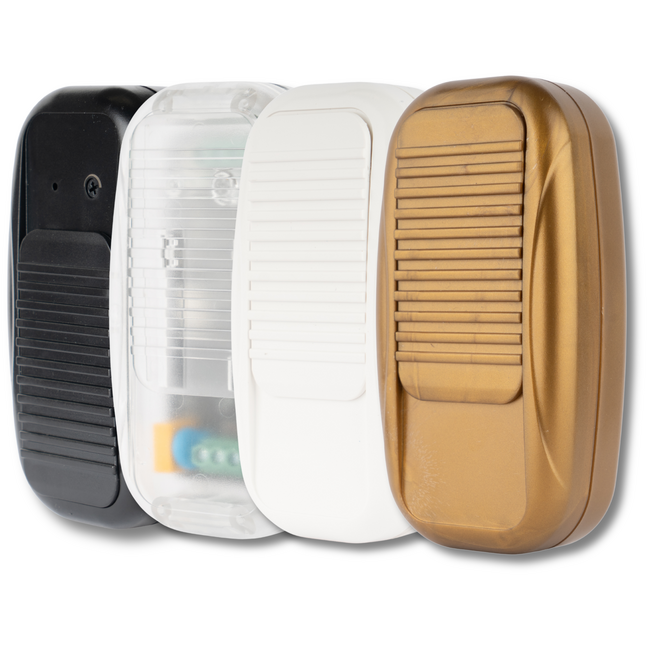

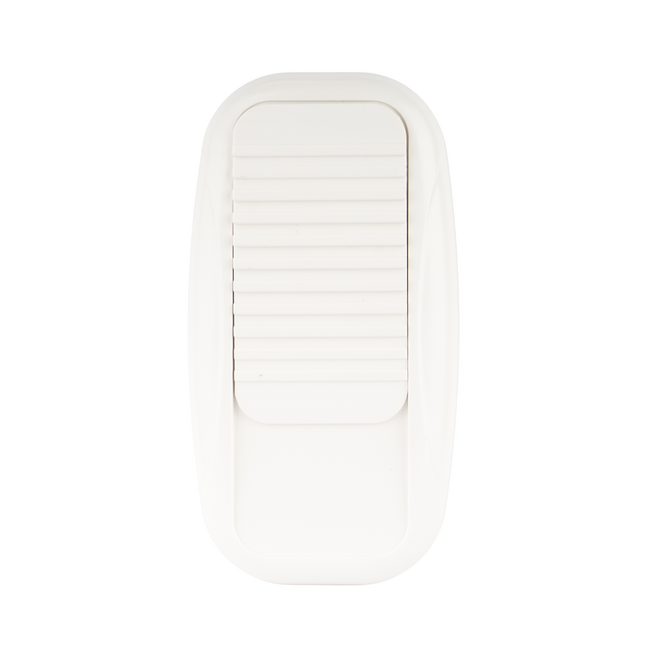

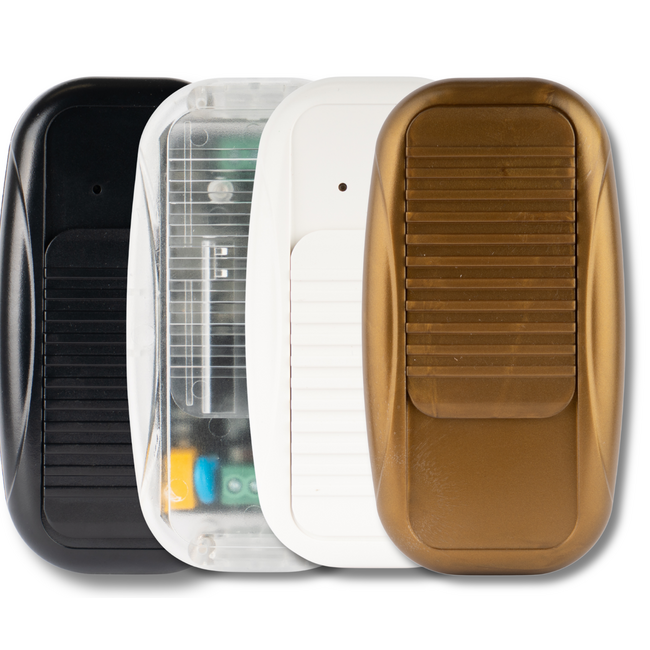

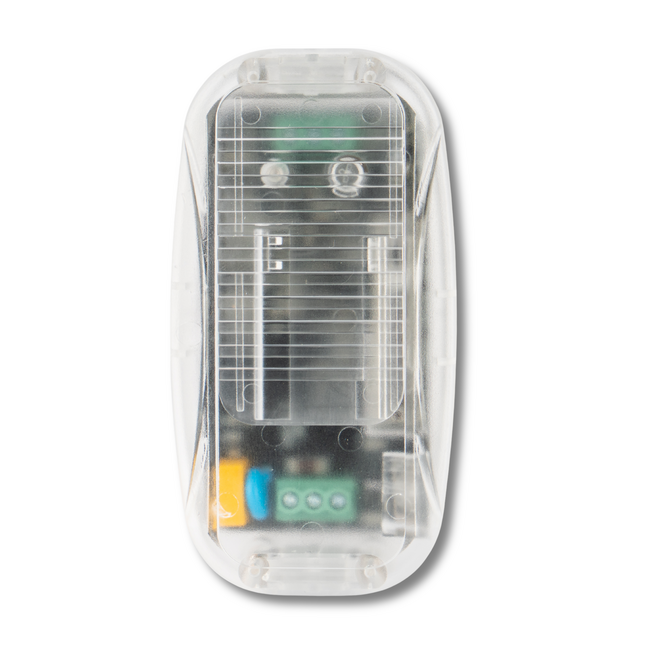

• Available in transparent, white, black and gold/bronze

Dimming technology

The Tradim floor dimmer operates using trailing edge technology (RC). This dimming technology ensures smooth and stable dimming performance, good compatibility with different light sources and reliable dimming without flickering when used with suitable lamps.

Compatibility and power

Always use the dimmer in combination with dimmable light sources. Dimming performance depends on the quality of the LED lamp. This Tradim floor dimmer is suitable for the following types of lamps:

	LED lamps - 12 Volt: maximum 80 Watt * - 230 Volt: maximum 70 Watt
	LED filament lamps - 230 Volt: maximum 70 Watt
	Halogen lamps - 12 Volt: maximum 80 Watt - 230 Volt: maximum 100 Watt
	Incandescent lamps - 230 Volt: maximum 100 Watt

* Depending on the combination of lamp and driver/transformer

Maximum power
This Tradim floor dimmer is suitable for 12V/230V 1-100W/VA and 70W LED. Never load a dimmer with more than 80% of its maximum power!

Installation
Always connect the dimmer according to the supplied wiring diagram. Do you have no knowledge of electricity? Then have this done by a professional!

Specifications

• Operation: slide control
• Dimming technology: trailing edge (RC)
• Adjustable minimum dim level by means of adjustment screw
• With indicator LED

Variants and article numbers

Also available

• 12V version
• 24V version

Warranty
We offer you a 2-year warranty. Because this floor dimmer does not experience voltage spikes, this has no consequences for the lifespan of your lighting.

Download the manual here.

Watch the instruction video here!
