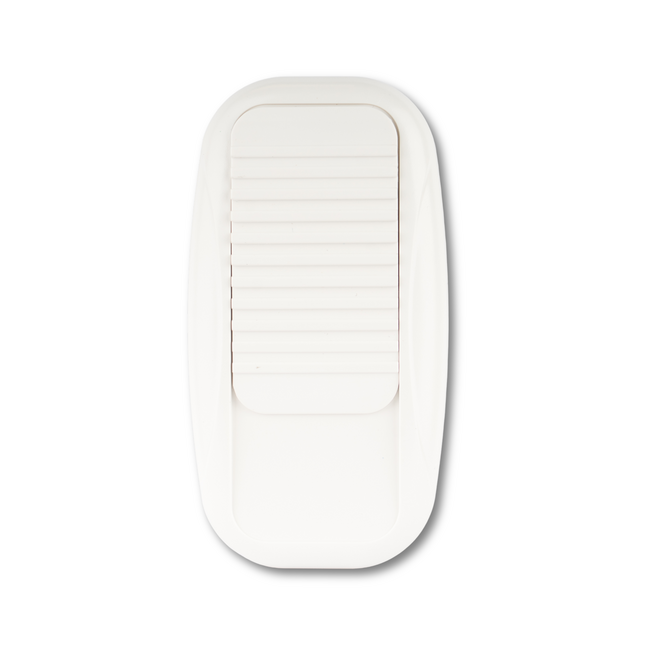

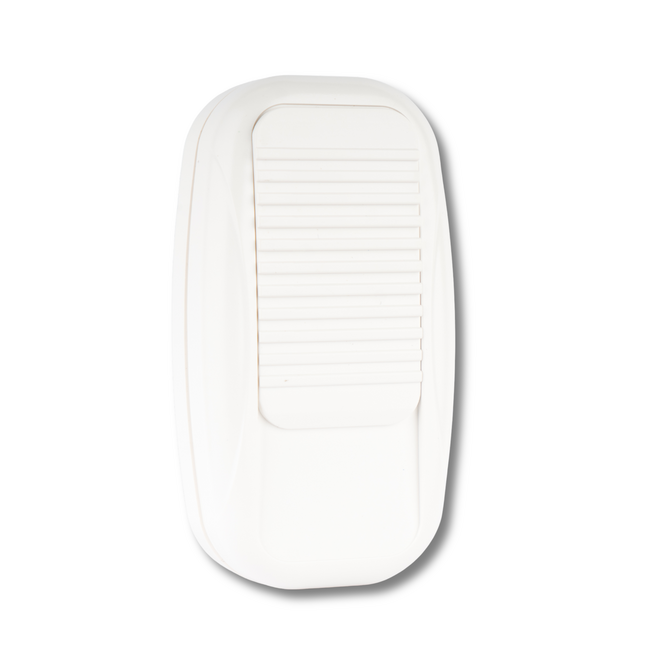

To guarantee the unity of their range, they have adapted model 63103x series to this new design.  This floor dimmer is operated by means of a slide for on/off and dimming. The dimmer has a screw for setting the minimum dimming position and an indication LED shows whether the dimmer is on or off. This dimmer is available in transparent, white and black.

Light sources

On a dimmer, you use dimmable light sources. The quality of the bulb determines how well it dims. The Tradim 631041 is suitable for the following lamps:

	LED lamps - 12 Volt: maximum 80 W * - 230 Volt: maximum 70 W
	LED filament lamps - 230 V: maximum 70 W
	Halogen bulbs - 12 V: maximum 80 W * - 230 V: maximum 100 W
	Light bulbs - 230 V: maximum 100 W

* Depending on lamp and driver/transformer combination

The dimmer uses the Smart Dim Technology. By applying this technology, this dimmer can also dim filament LED lamps, for this purpose the dimmer is suitable for dimming many well-known brands of good quality LED lamps.

Maximum power

This Tradim 631041 floor dimmer is suitable for 12V/230V 1-100 W/VA. Never load a dimmer more than 80% of its maximum power!

Installation

Always connect the dimmer according to the wiring diagram provided. Do you have no knowledge of electricity? Then have a professional do it for you!

Floor dimmers

Floor dimmers are convenient devices that serve to adjust the intensity of lighting in a room. They are designed to connect floor lamps and allow users to adjust lighting as desired. Floor dimmers can help create the right atmosphere and offer flexibility for different activities in a room. They are a practical and aesthetic addition to interiors.

Warranty

We offer a 2-year warranty. As the 631041 floor dimmer has no peak voltage, this has no consequences for the service life of your lighting.

Download the manual here.

Watch the instruction video here!
