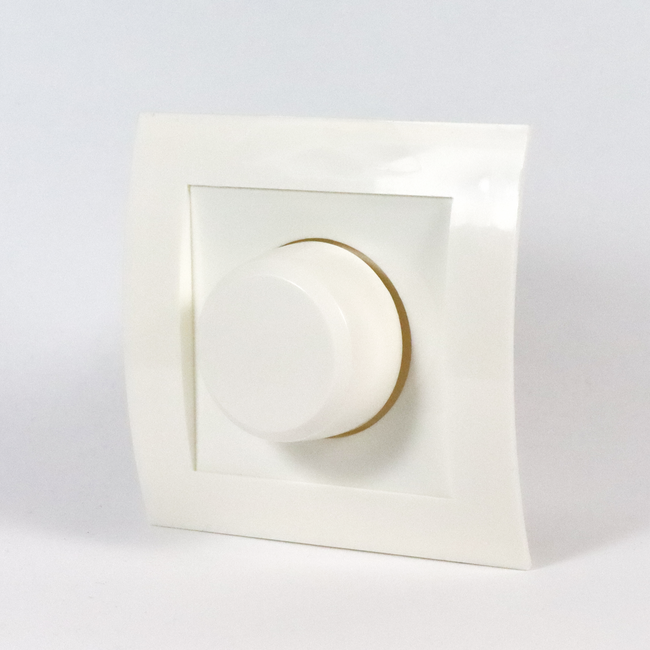

Complete wall dimmer for halogen and incandescent lamps

The Tradim 2331 is a classic 230V flush-mounted dimmer for halogen and incandescent lamps from 35 to 300W/VA. It uses leading-edge dimming technology (R) and is a practical solution for existing lighting installations with traditional light sources.

The cover plate and dimmer knob are included, so there is no need to purchase these finishing components separately.

Operation is simple: press the dimmer knob to switch the lighting on or off and rotate it to adjust the brightness. Thanks to the integrated two-way switching function, the dimmer can also be used in a two-way switching installation.

Key features

• Suitable for 230V halogen and incandescent lamps
• Power: 35-300W/VA
• Cover plate and dimmer knob included
• Push/rotary control for switching and dimming
• Leading-edge dimming (R)
• Two-way switching
• Suitable for standard flush-mounting boxes
• 2-year warranty

Specifications

• Brand: Tradim
• Model: 2331
• EAN: 8718801930762
• Voltage: 230V AC
• Power: 35-300W/VA
• Dimming technology: leading edge (R)
• Control: push/rotary knob
• Light sources: 230V halogen and incandescent lamps
• Dimensions: 71 × 71 × 55 mm
• Installation: flush-mounted
• Cover material: included
• Warranty: 2 years

Please note: this dimmer is not suitable for LED lighting.

Light sources

On a dimmer, you use dimmable light sources. The quality of the lamp determines how well it dims. The Tradim 2331 wall dimmer is suitable for the following lamps:

	Halogen bulbs - 230 V: maximum 300 Watt
	Incandescent lights - 230 Volt: maximum 300 Watt

* Depending on lamp and driver/transformer combination

Installation

Always connect the dimmer according to the wiring diagram provided. Do you have no knowledge of electricity? Then have this done by a professional! The dimmer fits into standard flush-mounting boxes.
TIP! Always test the dimmer before fitting it in the wall. Damaged dimmers due to screwing are not covered by our return policy.

Wall dimmers

Wall dimmers, installed in the wall, allow you to adjust the light intensity in a room. They improve the atmosphere for different occasions and save energy by reducing power consumption. They also extend the life of lamps. These versatile devices are valuable additions to both domestic and commercial spaces.

Warranty

We offer a 2-year warranty. Because the 2331 wall dimmer has no peak voltage, this has no consequences for the lifespan of your lighting.
