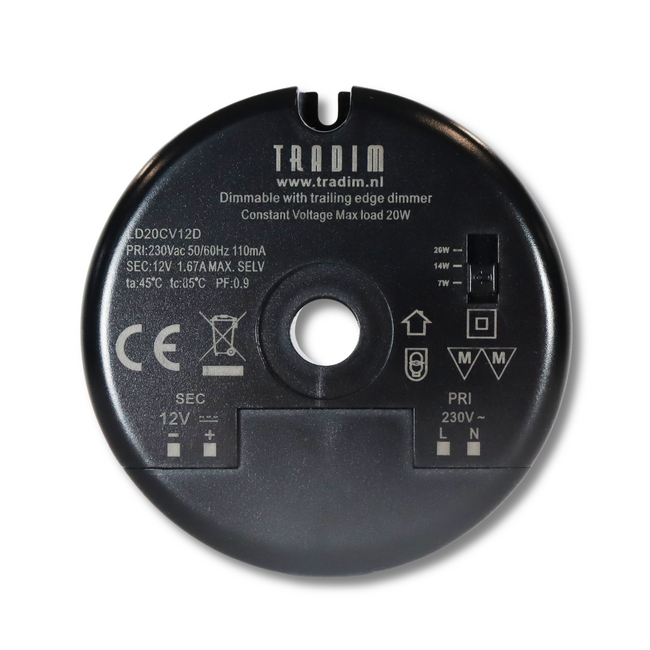

The Tradim LD20CV12D LED driver is a compact and reliable solution for powering 12V LED lighting. This dimmable driver operates on 230V and is suitable for various applications with LED lamps and LED strips.

Compatibility and power

	LED lamps - 12 Volt: Maximum 20 Watt
	LED strips - 12 Volt: Maximum 20 Watt

• 12V LED lamps: up to 20W
• 12V LED strips: up to 20W
• Compatible with dimmers: trailing edge (R,C)

Features

• Unique round and compact design
• Energy-efficient upgrade from halogen transformers
• Reliable retrofit solution for halogen installations up to 20W
• Suitable for dimmable LED applications

Technical specifications

• Input voltage: 230V AC / 50 Hz
• Output voltage: 12V DC
• Type: Constant Voltage LED driver
• Power: max. 20W
• Dimmable: yes
• Article number: LD20CV12D
• EAN: 8718801939130

Manual

Download the manual for the LD20CV12D here
