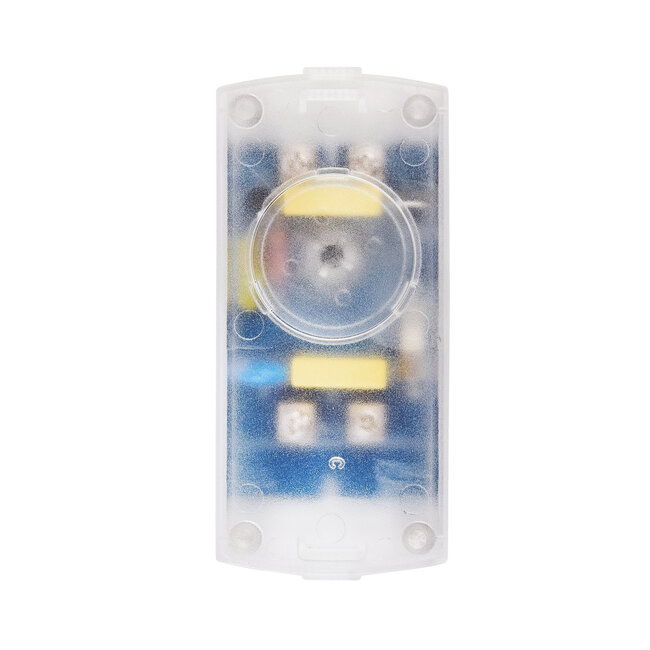

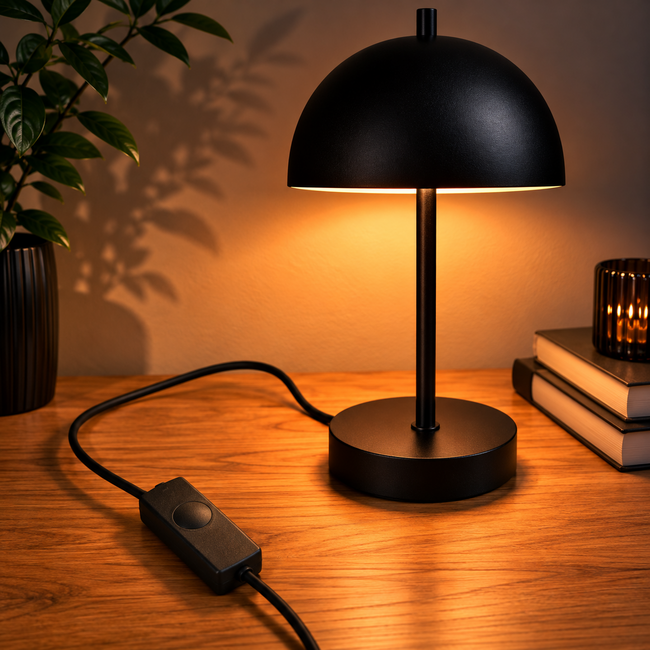

The Tradim 642xx cord dimmer with push button is a versatile solution for dimming 230V lighting and 12V applications. For 12V lighting, this dimmer only works in combination with a dimmable LED driver (for LED) or a dimmable halogen transformer. Thanks to the push button switch, you can easily switch and dim your lighting. This series is suitable for LED, filament LED, halogen and incandescent lamps.

Key features

• Suitable for 230V and 12V lighting
• Works with LED, filament LED, halogen and incandescent lamps
• Easy operation via push button (switching and dimming)
• Automatic load detection

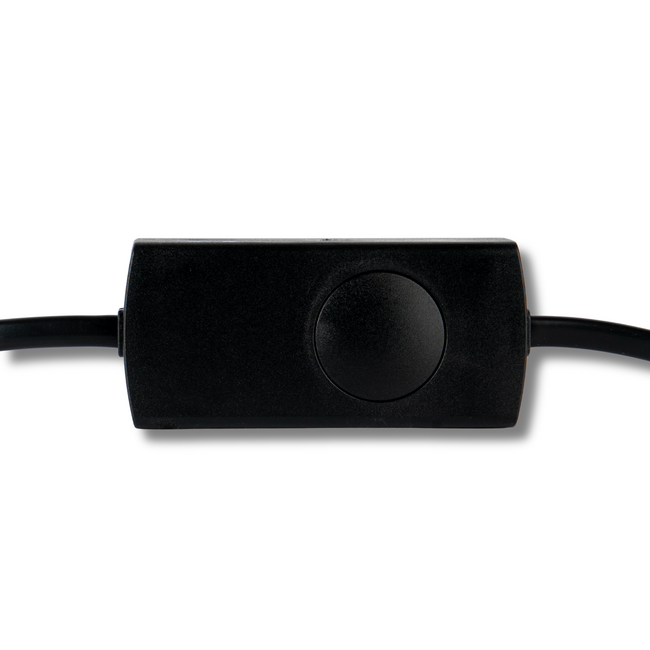

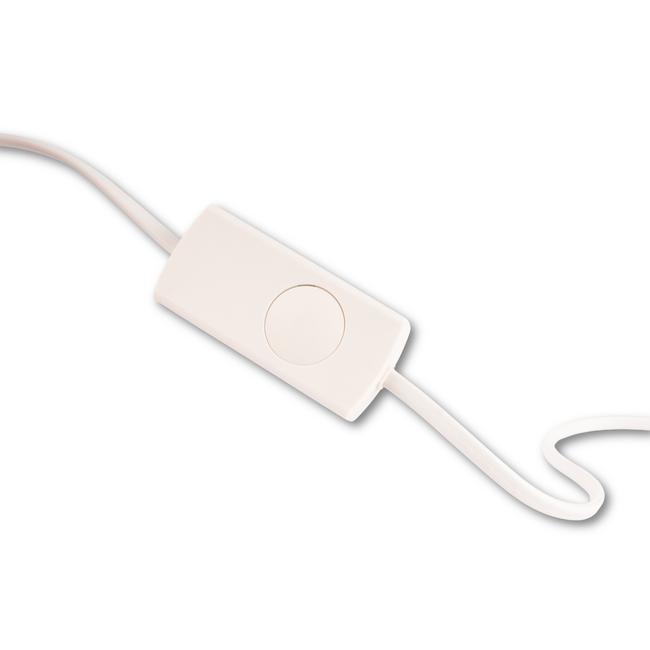

• Available with and without cord

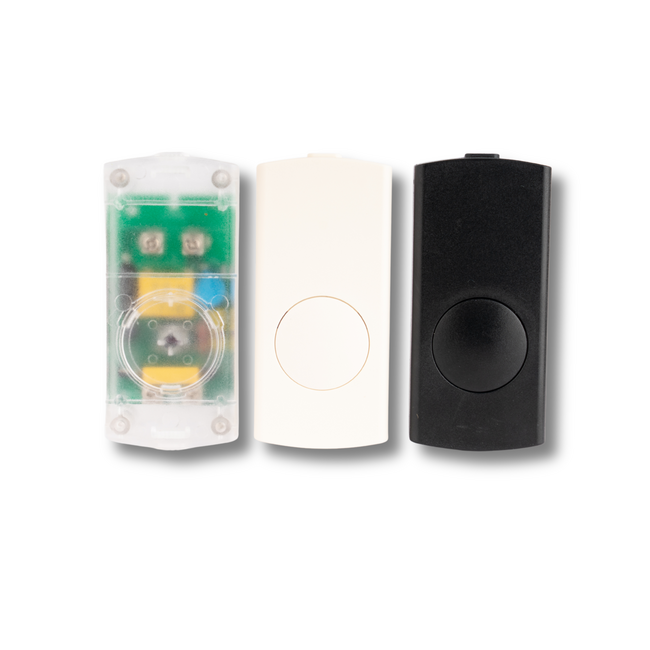

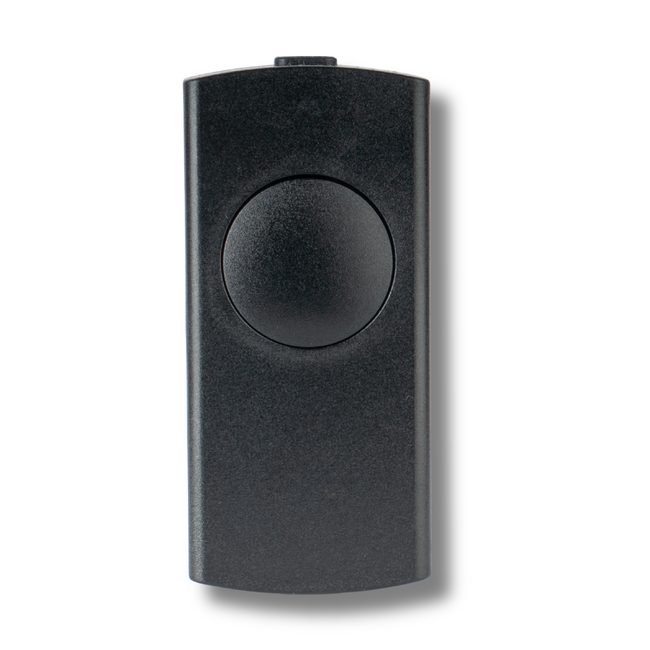

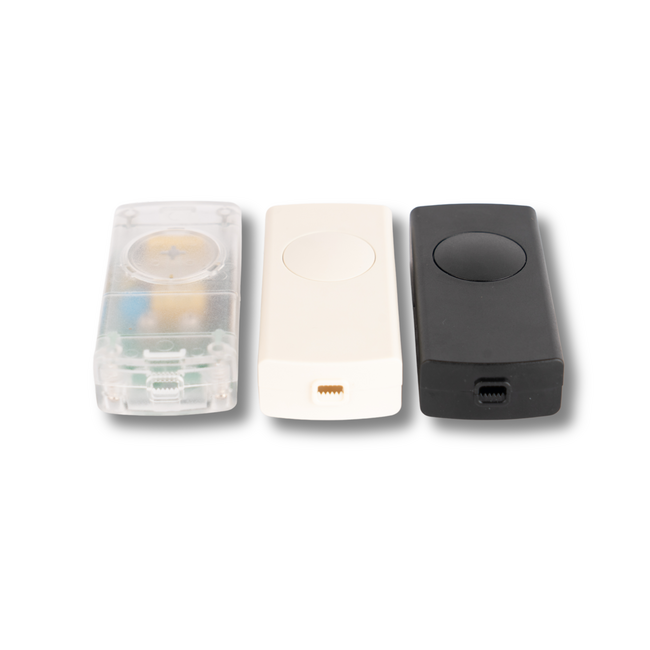

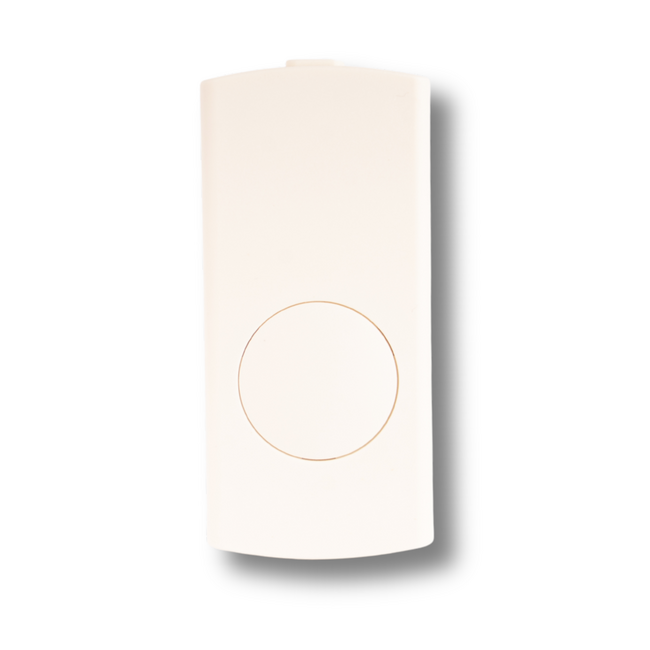

• Available in black, white and transparent

Compatibility and power

	LED lamps - 12V: max. 80W* (in combination with dimmable LED driver) - 230V: max. 70W
	LED filament lamps - 230V: max. 70W
	Halogen lamps - 12V: max. 80W* (in combination with dimmable transformer) - 230V: max. 100W
	Incandescent lamps - 230V: max. 100W

* Depends on the combination of lamp and LED driver or transformer

Maximum load

This LED dimmer is suitable for 2-100 W/VA or 2-80W LED. Never load a dimmer beyond 80% of its maximum capacity for stable operation and longer lifespan.

Variants and article numbers

Installation

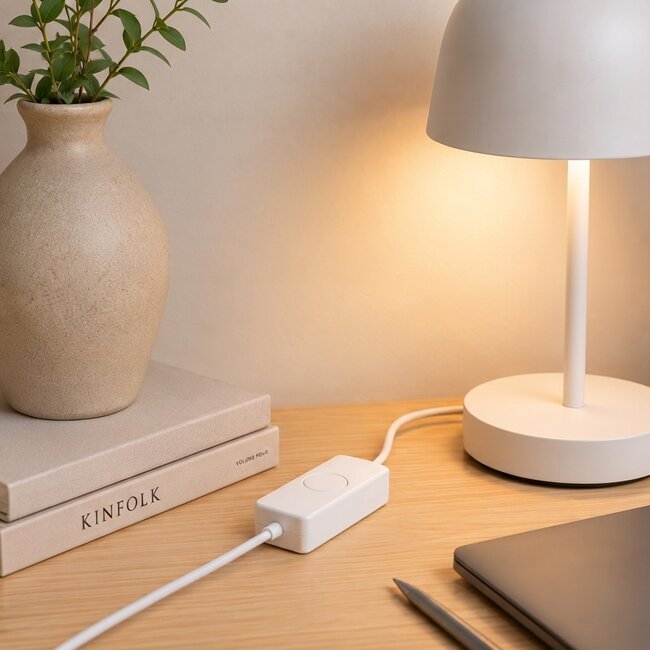

For 230V lighting, install the dimmer directly in the cord of the lamp. For 12V lighting, the dimmer must be installed between the plug and the LED driver or transformer.

Warranty

2-year manufacturer warranty.

User manual

View user manual
