Dimmable 24V LED driver for LED strips and LED lamps

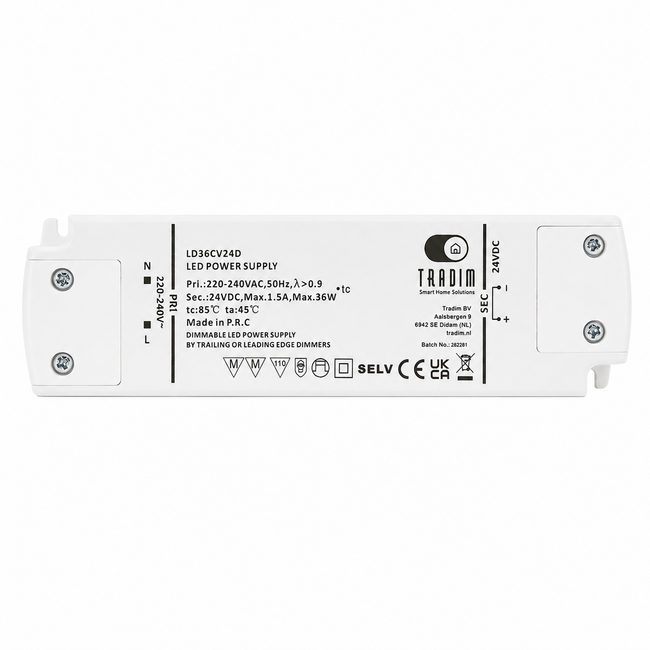

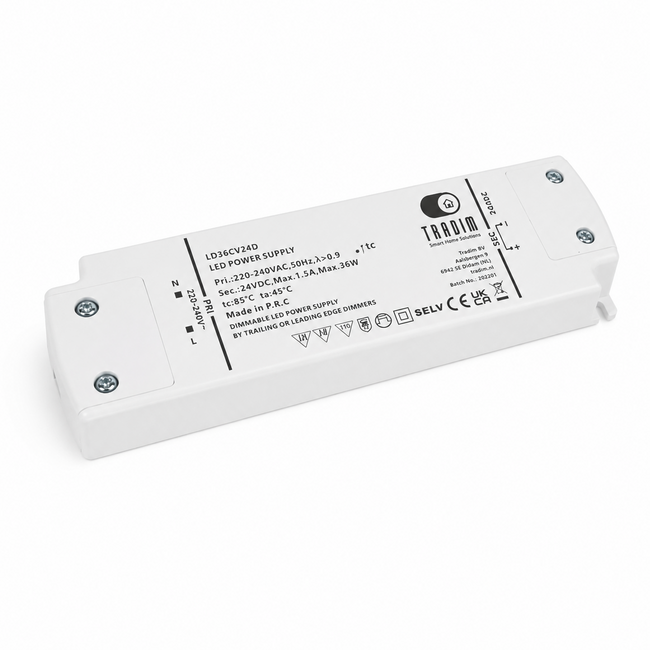

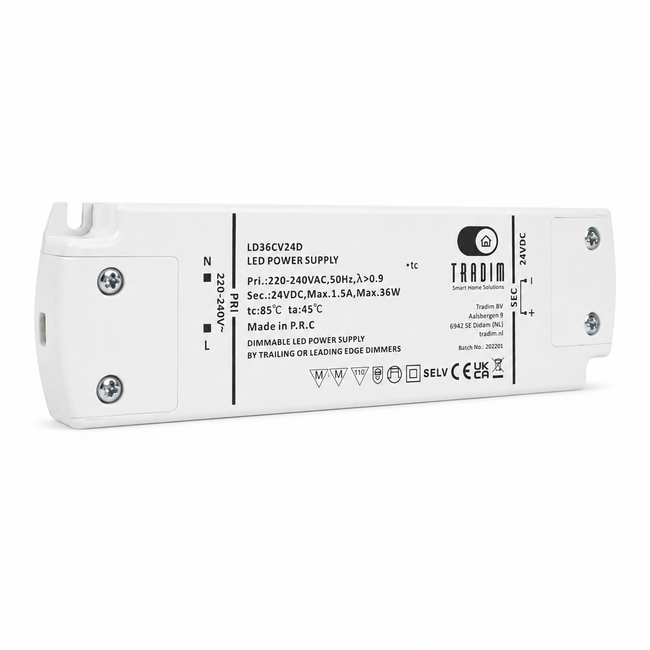

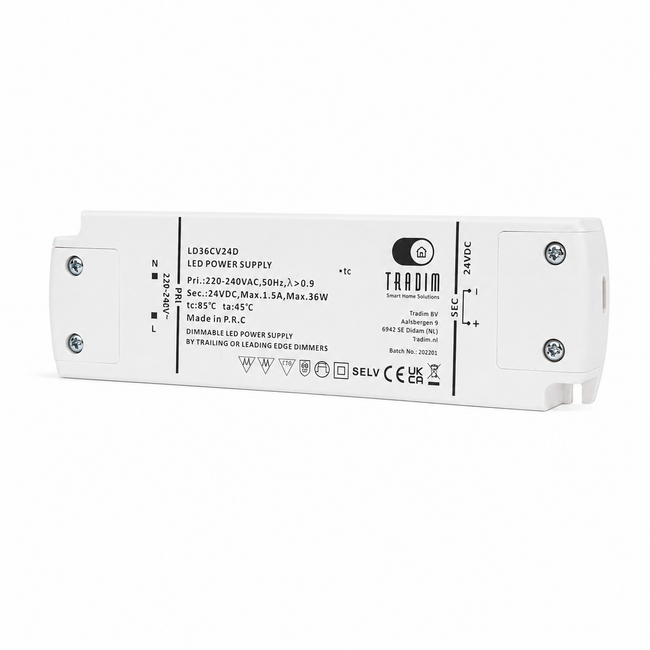

The Tradim LD36CV24D is a dimmable Constant Voltage LED driver for powering and dimming 24V LED lighting. With a maximum output of 36W, the driver is suitable for dimmable 24V LED lamps and single-colour 24V LED strips.

The driver provides a stable 24V DC output voltage and ensures reliable, flicker-free dimming. Thanks to its compact and slim 158 × 45 × 18 mm design, it can easily be installed inside luminaires, ceilings and other installation spaces.

The LD36CV24D is also suitable for replacing existing 24V halogen installations when switching to energy-efficient LED lighting.

Key features

• Dimmable Constant Voltage LED driver
• Output voltage: 24V DC
• Maximum power: 36W
• TRIAC dimmable with R and C dimmers
• Compatible with Tradim dimmers
• For dimmable 24V LED lamps and single-colour LED strips
• Stable and flicker-free light control
• Overvoltage and short-circuit protection
• Compact and slim design
• IP20 for indoor use
• 2-year warranty

Specifications

• Article number: LD36CV24D
• EAN: 8718801939222
• Type: Constant Voltage LED driver
• Input voltage: 220V AC
• Output voltage: 24V DC
• Power: maximum 36W
• Dimming technology: TRIAC
• Dimmer type: R, C
• IP rating: IP20
• Earthing: unearthed
• Protection: overvoltage and short-circuit protection
• Dimensions: 158 × 45 × 18 mm
• Weight: 140 g
• Warranty: 2 years

Suitable for

• Dimmable 24V LED lamps
• 24V single-colour LED strips
• LED lamps with G4, GU5.3, MR16 and GY6.35 connections, among others
• Replacing 24V halogen installations with LED lighting
