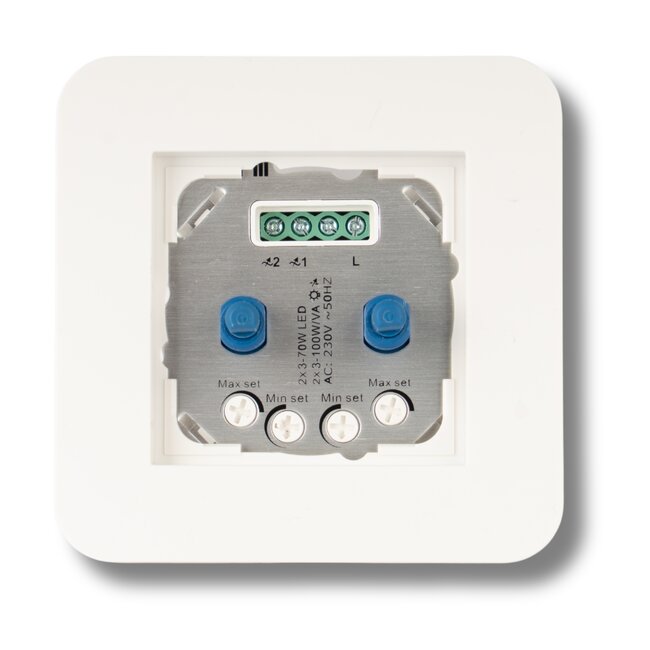

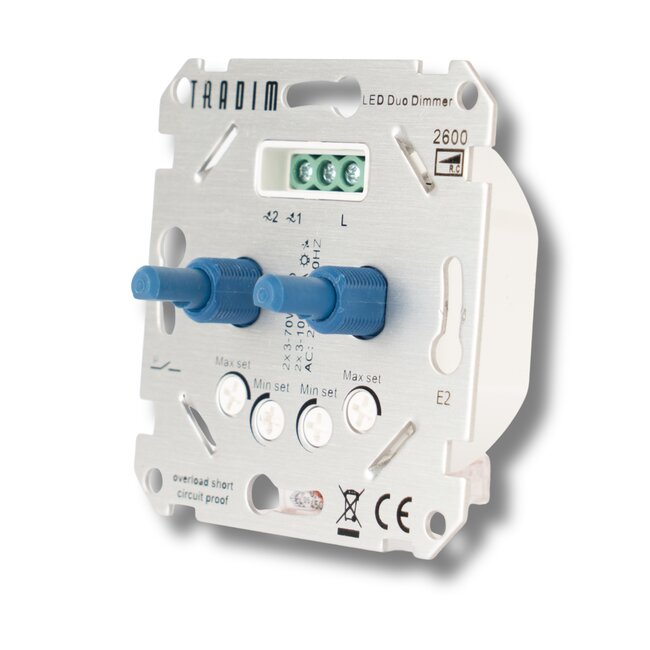

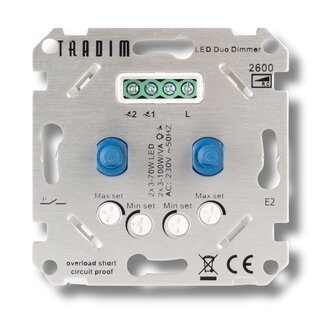

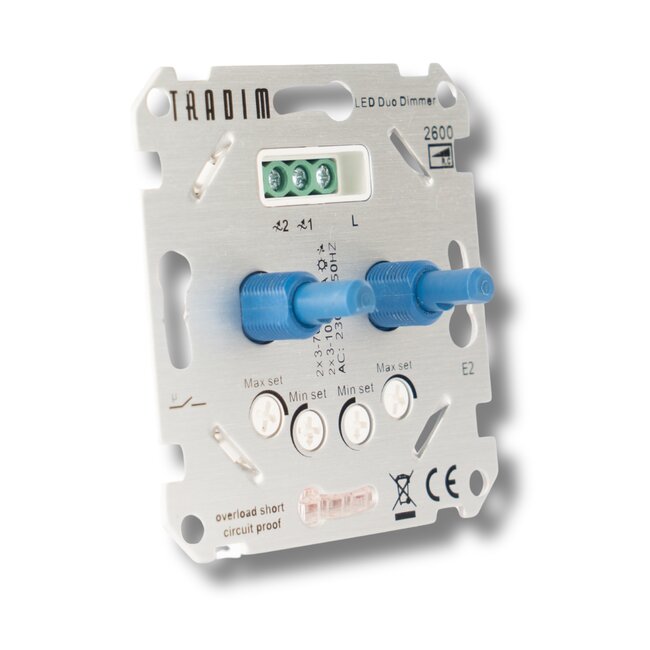

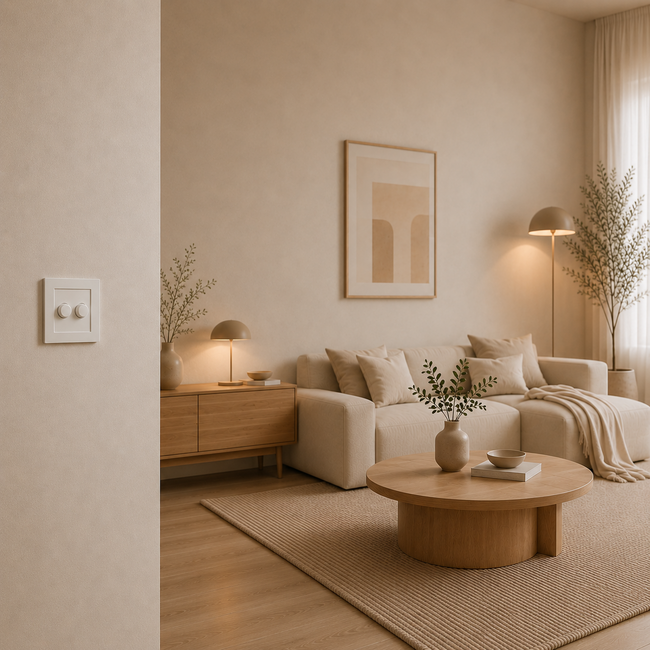

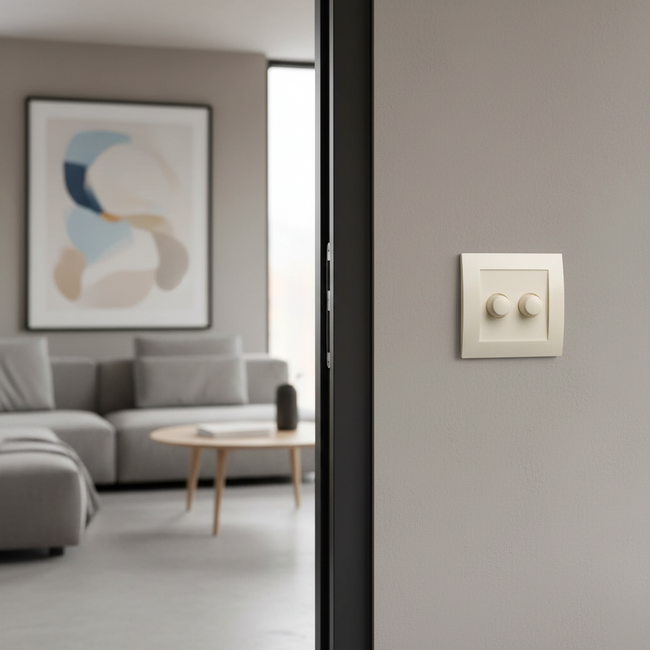

The Tradim 2600 is our entry-level LED duo dimmer. A solid and reliable duo dimmer at a competitive price.

This duo wall dimmer 230V, 2x 3-100W/VA is suitable for dimming LED (filament), halogen and light bulbs. Phase cut-off dimmer R,C which prevents hum in both the dimmer and the connected LED lamps.

This dimmer has a soft start for a favourable influence on the life span of the applied LED lamps. Of both channels, the minimum and maximum dimming position can be adjusted by means of the adjusting screws. The dimmer is easy to install in a single, standard flush-mounting box.

Light sources

On a dimmer, you use dimmable light sources. The quality of the LED lamp determines how well it dims. The Tradim 2600 wall dimmer is suitable for the following lamps:

	LED lamps - 12 Volt: maximum 80 Watt * - 230 Volt: maximum 70 Watt
	LED Filament lamps - 230 Volt: maximum 70 Watt Filament stabiliser may be needed!
	Halogen bulbs - 12 V: maximum 80 Watt * - 230 V: maximum 100 Watt
	Incandescent lights - 230 Volt: maximum 100 Watt

* Depending on lamp and driver/transformer combination

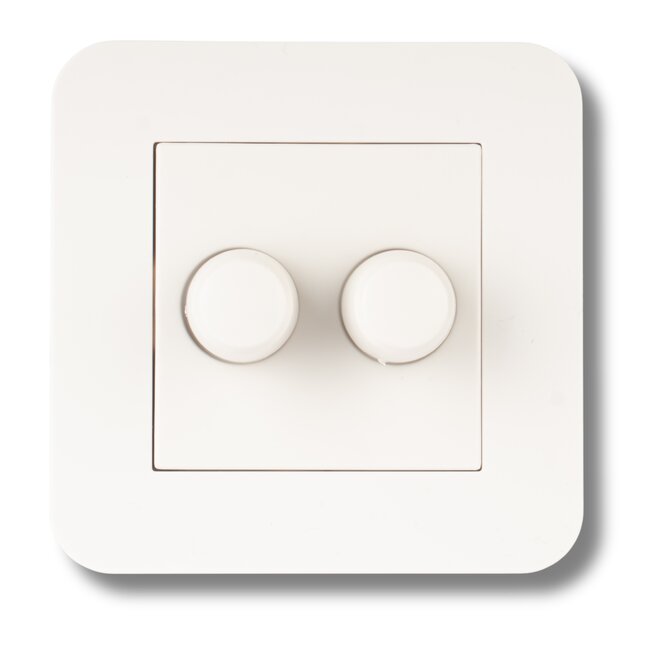

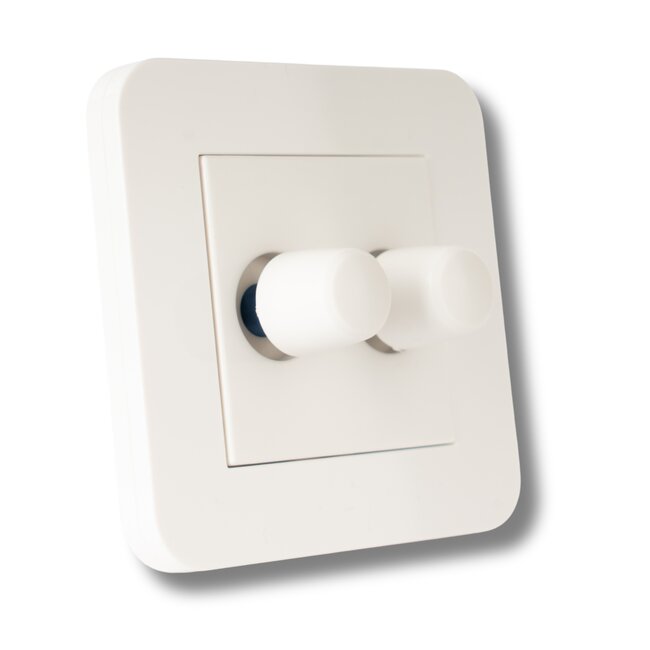

Cover plate and dimmer knobs

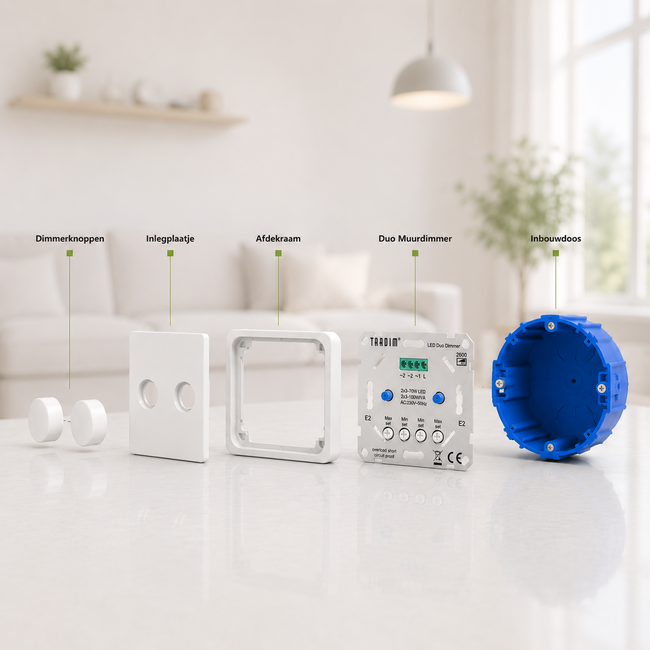

The Tradim 2600 LED Wall Dimmer is supplied without cover plate and dimmer knobs. You can easily order these here. The standard switching materials from Busch Jaeger, Jung, Berker and Peha can be added to this dimmer.

Installation

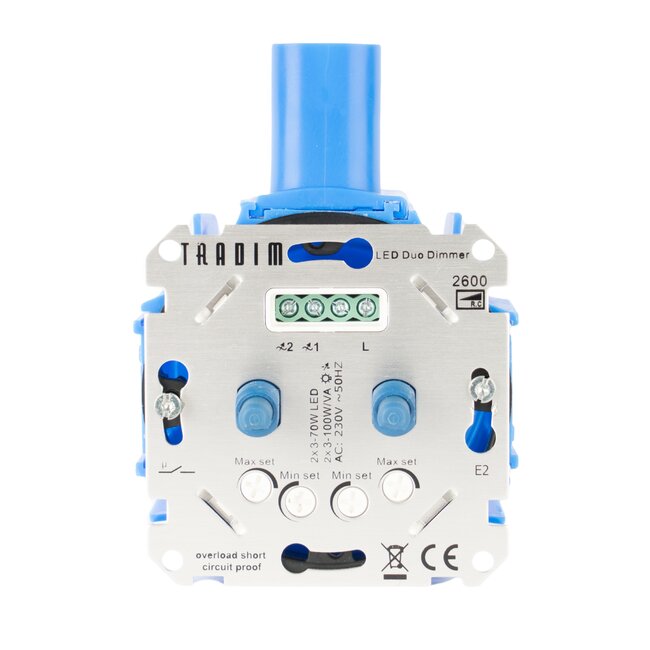

Always connect the dimmer according to the wiring diagram provided. Do you have no knowledge of electricity? Then have this done by a professional! The dimmer fits into standard flush-mounting boxes.
TIP! Always test the dimmer before fitting it in the wall. Damaged dimmers due to screwing are not covered by our return policy.

Wall dimmers

Wall dimmers, installed in the wall, allow you to adjust the light intensity in a room. They improve the atmosphere for different occasions and save energy by reducing power consumption. They also extend the life of lamps. These versatile devices are valuable additions to both domestic and commercial spaces.

Warranty

We offer a 2-year warranty. Because the 2600 LED Wall Dimmer has no peak voltage, this has no consequences for the lifespan of your lighting.

User manual

View the user manual in Dutch and English here.

Learn step by step how to connect the dimmer correctly!
