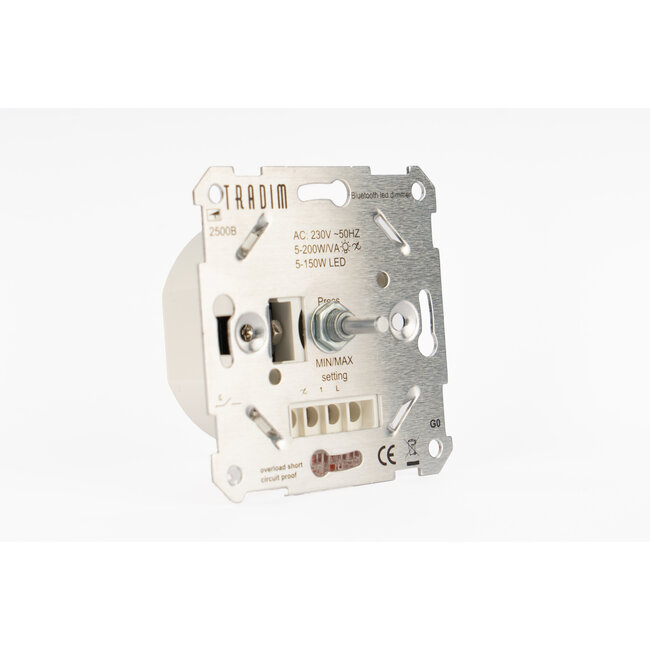

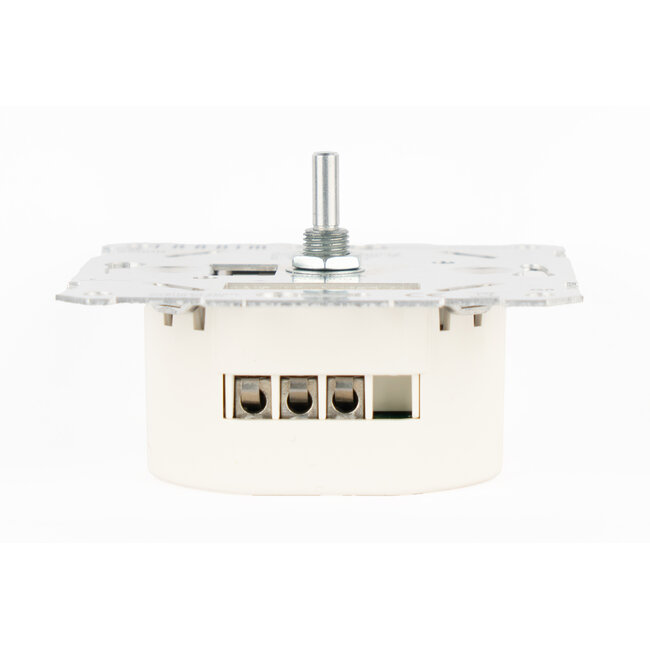

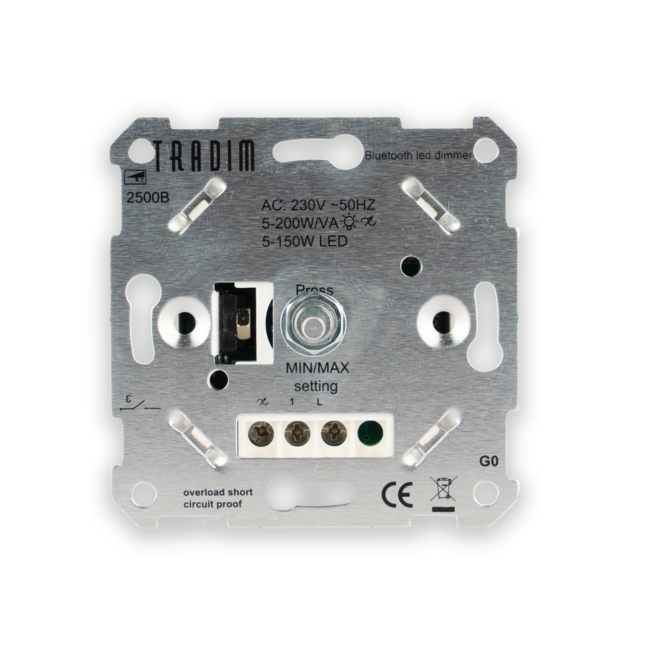

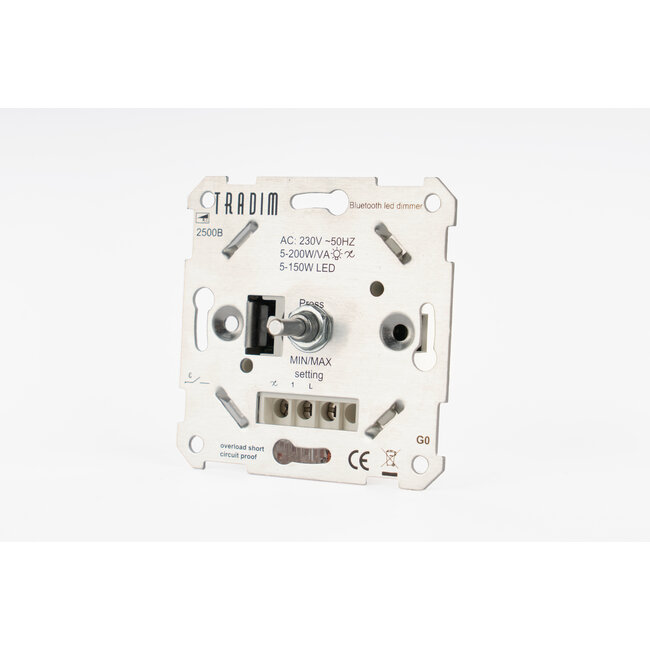

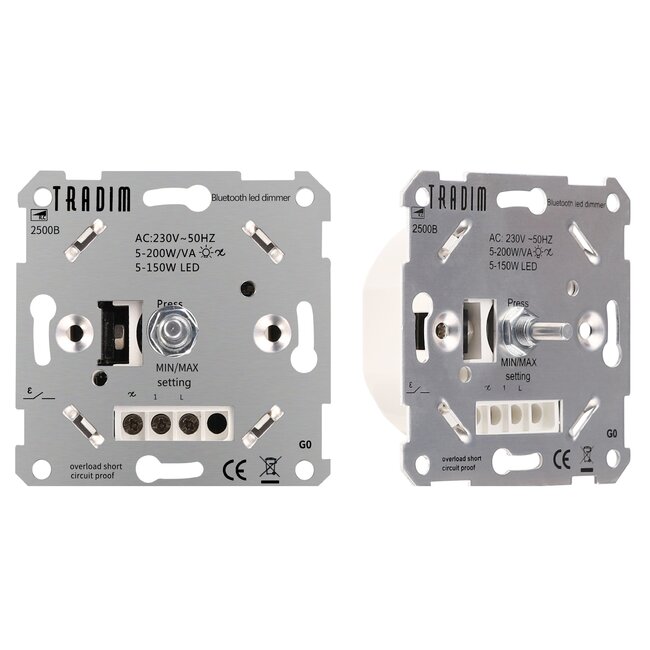

Tradim 2500B Bluetooth wall dimmer

Control your lighting easily via the push/turn knob, smartphone or voice control. The Tradim 2500B Bluetooth wall dimmer is suitable for dimmable led and halogen lamps and works without a neutral wire. Thanks to Bluetooth Low Energy and trailing edge dimming (RC), your lighting dims smoothly and silently.

Key features

• Suitable for 5-200W/VA
• Suitable for 5-150W led lighting
• No neutral wire required
• Bluetooth control via app
• Works with Google Assistant and Amazon Alexa
• Control via push/turn knob, app or voice control
• Adjustable minimum dim level
• Automatic maximum dim level adjustment
• Trailing edge dimming (RC)
• Suitable for standard wall boxes
• Compatible with Busch Jaeger, Jung, Berker and Peha switch ranges

Smart Bluetooth control

The Tradim 2500B Bluetooth wall dimmer combines traditional operation with smart functionality. Easily control your lighting:

• manually via the push/turn knob
• wirelessly via Bluetooth app
• with voice control using Google Assistant or Amazon Alexa

Thanks to Bluetooth Mesh, smart devices communicate reliably with each other. This allows you to easily control and automate multiple lighting applications.

Ideal for renovation projects and existing installations because no neutral wire is required.

Suitable light sources

Always use dimmable light sources with a dimmer. The quality of the led lamp partly determines the dimming performance.

The Tradim 2500B Bluetooth wall dimmer is suitable for:

	LED lamps - 230 Volt: maximum 150 Watt
	LED Filament lamps - 230 Volt: maximum 150 Watt Filament stabiliser may be needed!
	Halogen bulbs - 230 V: maximum 200 Watt

* Depending on lamp and driver/transformer combination

Maximum load

This Bluetooth dimmer is suitable for:

• 5-200W/VA
• 5-150W led

Never load a dimmer above 80% of its maximum capacity for optimal performance and lifespan.

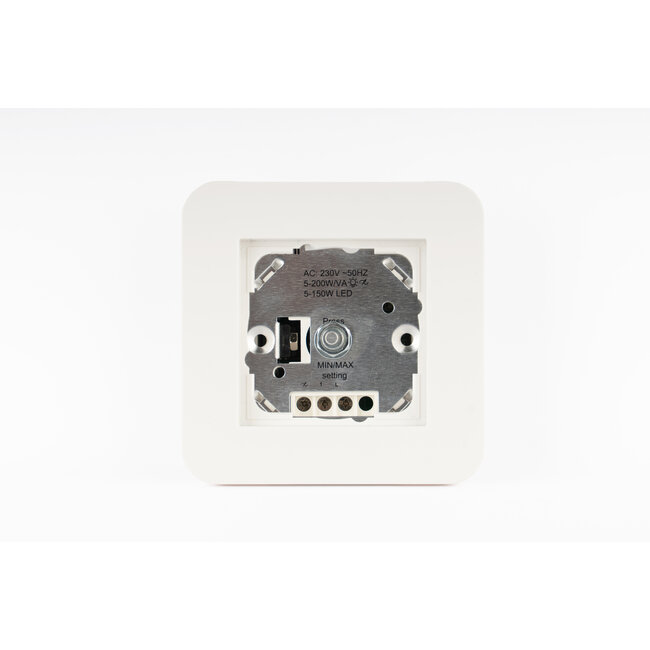

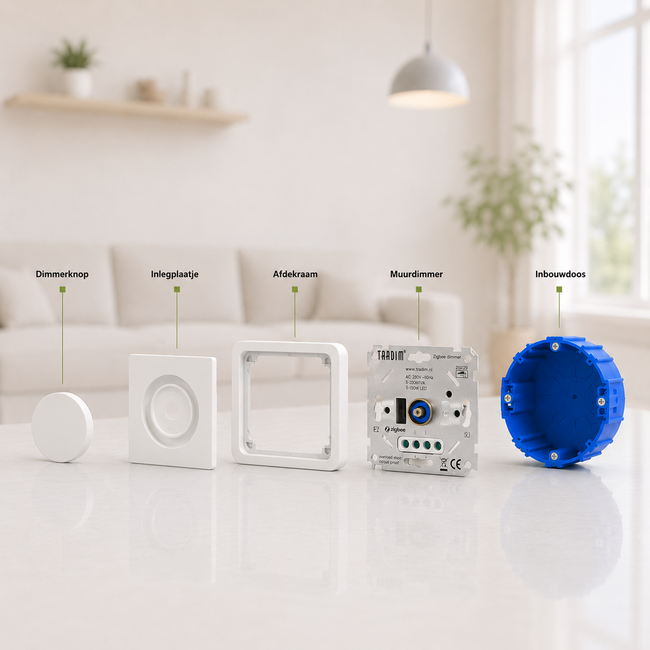

Cover frames and dimmer knobs

The Tradim 2500B Bluetooth wall dimmer is supplied without a cover frame and dimmer knob.

Compatible with standard switch ranges from:

• Busch Jaeger
• Jung
• Berker
• Peha

Installation

Always connect the dimmer according to the supplied wiring diagram.

No experience with electrical installations? Have the installation carried out by a qualified electrician.

The dimmer fits standard wall boxes. The adjustment screws allow you to easily set the correct dimming range for your lighting.

Important tip

Always test the dimmer before final installation. Damage caused during mounting is excluded from the return policy.

Warranty

The Tradim 2500B Bluetooth wall dimmer comes with a 2-year warranty.

Thanks to stable dimming technology and high-quality electronics, your lighting dims reliably and comfortably.

User manual

View the user manual here
